Let's democratize 3D scanning
HP DesignScan 3D scanner makes 3D scanning accessible to everyone without compromising quality. Ergonomic, durable, and exceptionally easy to use, it delivers outstanding scanning accuracy and speed, enabling precise virtual representations for diverse applications, from engineering to digital archiving. Plus, it includes the integrated HP 3D Scan.OS software, making advanced 3D scanning simple for seasoned professionals and first-time users alike.
Introductory price of $5,990 USD
Get a quote

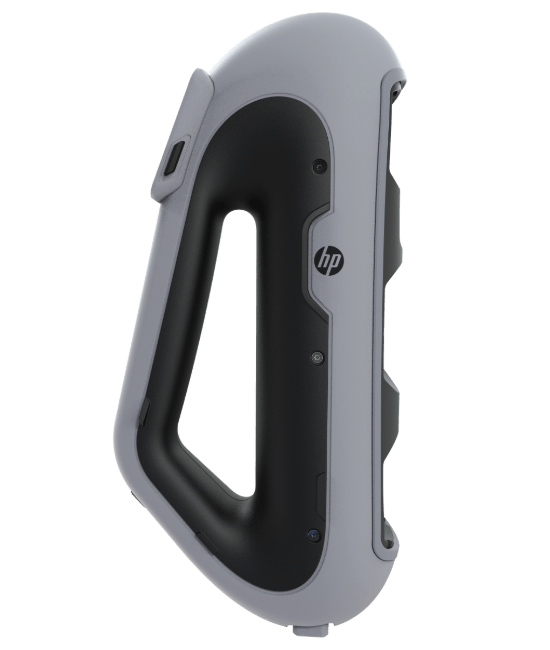

Comfort-driven ergonomics
Intuitive LCD screen
Scan by feel with haptic feedback
Designed in Canada
Try for 15 days and return for free
1 year warranty
Leverage the power of 3D scanning
Contact our team today to schedule your free demo and see firsthand how 3D scanning can transform your projects.
HP 3D Scan.OS

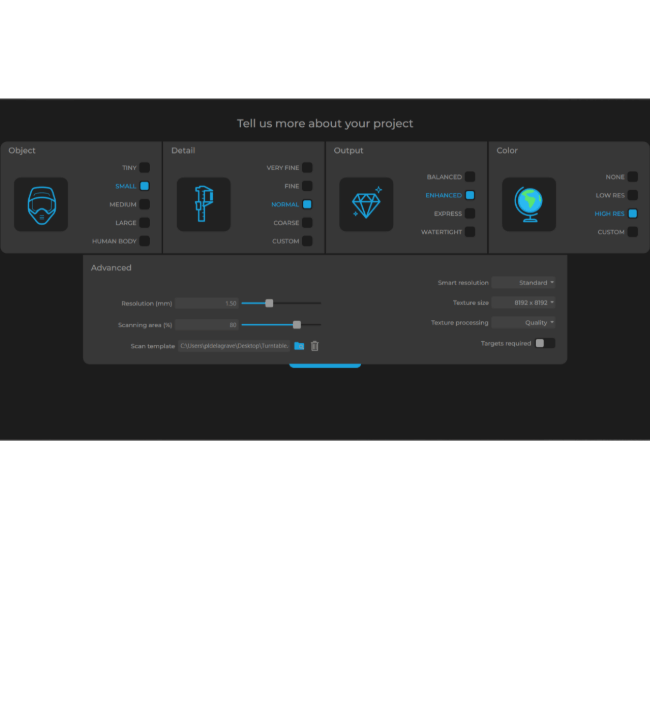

Set parameters
Adjust scanning parameters quickly to match the distinct qualities of your object for optimal results.

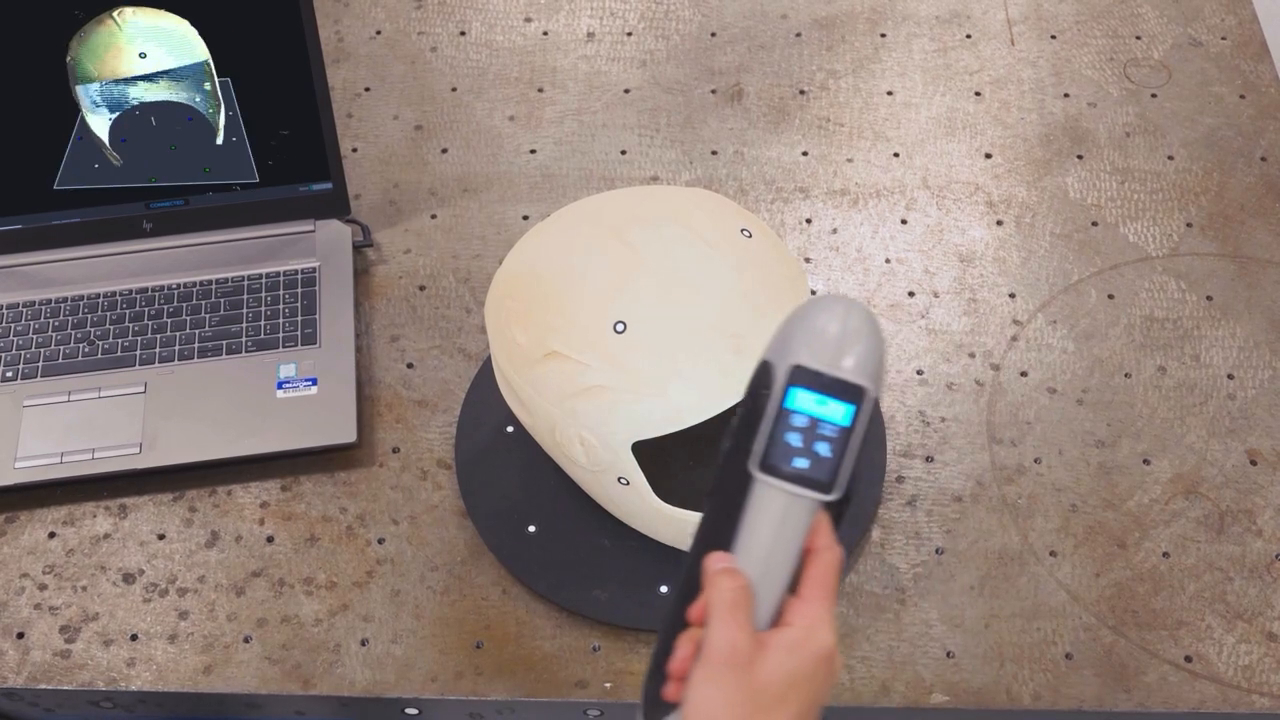

Scan your object
3D scan object’s geometry by smoothly guiding the scanner, following the intuitive on-screen instructions.
Easy cleanup
Instantly eliminate unwanted data such as background objects or your hands. The software automatically identifies and removes surfaces like your work area. Then, merge and align 3D scans as needed.
Quick file export
Finalize and export your cleaned mesh to your preferred software or archive your scan for future use, streamlining your workflow.
HP DesignScan 3D scanner technical specifications
Get all the details on this 3D scanner
Software
HP 3D Scan.OS
Recommended object size
0.1 - 3.0 m
(0.3-10 ft)
Accuracy
up to 0.050 mm
(0.0020 in)
Volumetric Accuracy
0.050 mm + 0.100 mm/m
(0.0020 in + 0.0012 in/ft)
Measurement Capabilities
Pin1.5 mm
(0.059 in)
Hole3.0 mm
(0.118 in)
Step0.1 mm
(0.0039 in)
Wall1.0 mm
(0.039 in)
Mesh resolution
0.250 mm
(0.01 in)
Scanning area
340 x 475mm
(13.39 x 18.7 in)
Scan speed
80 sec/m2
(7.4 sec/ft2)
Usage Distance (from object)
250 to 550 mm
(9.8 to 21.7 in)
Depth of field
300 mm
(11.8 in)
Projector Light Source
IR VCSEL
Scanner Controls
Touchscreen
Color Resolution (on object)
50 to 200 DPI
Positioning methods
Geometry and/or targets and/or texture
Measurement rate
1,250,000 measurements/s
Dimensions
304 x 150 x 79 mm
(12 x 5.9 x 3.2 in)
Weight
950 g
(2.1 lb)
Connectivity
USB 3.0
Output formats
.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf, .3mf, .iges(1), .step(1)
(1) With Peel 3.CAD only
(2) With Peel 3 Pro.CAD only
Need a 3D scanner?
Get more details on the HP DesignScan 3D scanner for your wide range of projects.
FAQ
Have questions? We're here to help.
-
The HP DesignScan 3D scanner is a versatile solution ideal for capturing accurate scans across diverse applications requiring high-quality mesh exports. The HP DesignScan 3D scanner for reverse engineering includes specialized tools optimized for precise extraction of features directly from scan data, with precise alignment and direct transfer to streamline workflows and reduce back-and-forth between scanning and CAD software.
-
Help is actually directly integrated into HP 3D Scan.OS. For additional questions, HP DesignScan users will have access to communities and forums from our customer portal!
-
Targets are more of a complement; the scanner can use geometry and texture for positioning. They are highly recommended for flatter or smoother surfaces as well as when accuracy is important.
