Let's democratize 3D scanning
The HP DesignScan 3D scanner for reverse engineering offers ergonomic design for effortless handling, combined with durability and user-friendly operation. Benefit from fast, precise 3D scanning capabilities and integrated software solutions—including HP 3D Scan.OS and HP Scan-to-CAD—for efficient, accurate feature extraction directly from your scan data.
Introductory price of $8,990 USD
Get a quote
Ultra-ergonomic handle
Intuitive LCD feedback
Haptic guidance for complex scanning
Engineered in Canada
Try for 15 days and return for free
1 year warranty
Transform your reverse engineering workflow with 3D scanning
Get in touch with our team today to book your free demo and discover how 3D scanning can elevate your projects.
HP Scan-to-CAD Software

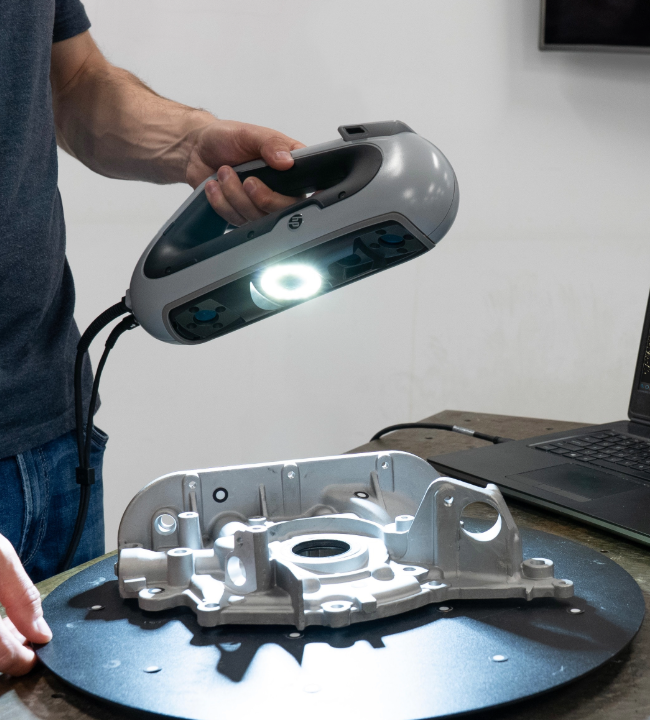

Generate accurate 3D measurements
Use intuitive, paintbrush-like movements to precisely scan objects, aided by clear, real-time guidance displayed on-screen.

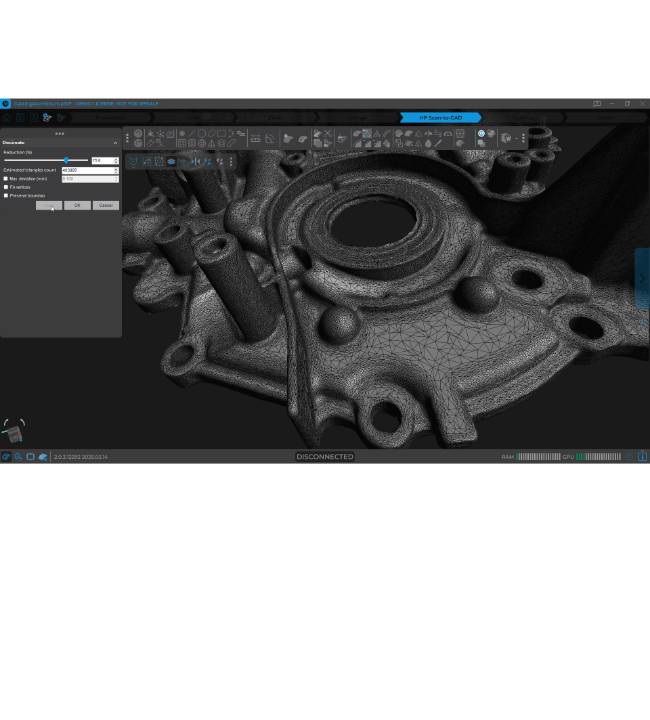

Streamline mesh editing
Effortlessly refine your scans with intuitive, automated mesh-editing tools. Quickly remove unwanted elements, merge multiple scans seamlessly, and create clean, detailed meshes in minutes.

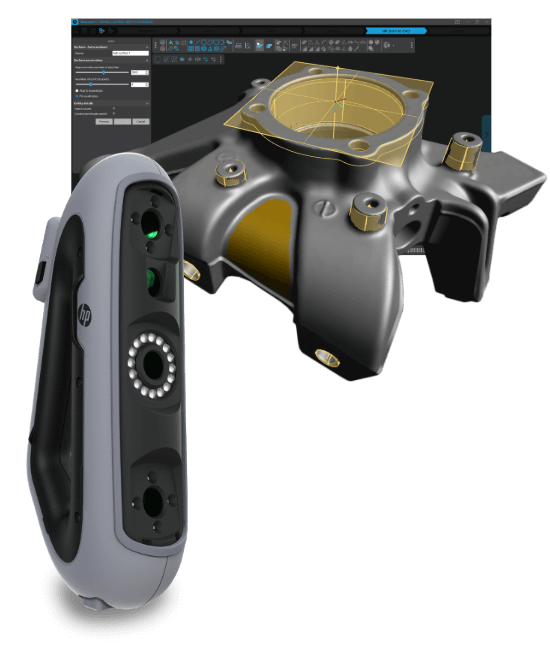

Simplify geometry extraction
Automatically identify and extract key geometric features, significantly reducing rework in reverse engineering and accelerating your redesign processes.

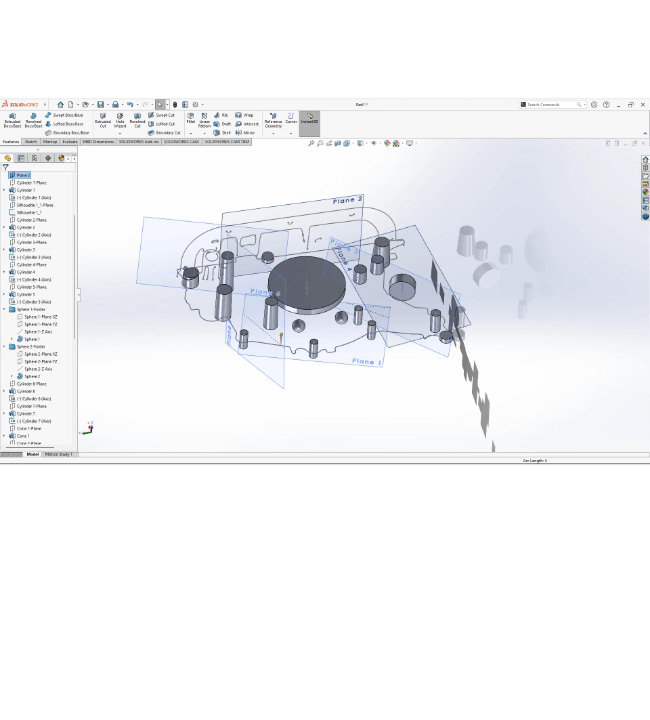

Export directly to CAD
Instantly export your refined scan data into popular CAD software platforms, enhancing productivity and enabling faster, more efficient design workflows.
HP DesignScan 3D scanner with HP Scan-to-CAD Software technical specifications
Get all the details on this 3D scanner
Software
HP 3D Scan.OS, HP Scan-to-CAD
Recommended object size
0.1 - 3.0 m
(0.3-10 ft)
Accuracy
up to 0.050 mm
(0.0020 in)
Volumetric Accuracy
0.050 mm + 0.100 mm/m
(0.0020 in + 0.0012 in/ft)
Measurement Capabilities
Pin1.5 mm
(0.059 in)
Hole3.0 mm
(0.118 in)
Step0.1 mm
(0.0039 in)
Wall1.0 mm
(0.039 in)
Mesh resolution
0.250 mm
(0.01 in)
Scanning area
340 x 475mm
(13.39 x 18.7 in)
Scan speed
80 sec/m2
(7.4 sec/ft2)
Usage Distance (from object)
250 to 550 mm
(9.8 to 21.7 in)
Depth of field
300 mm
(11.8 in)
Projector Light Source
IR VCSEL
Scanner Controls
Touchscreen
Color Resolution (on object)
50 to 200 DPI
Positioning methods
Geometry and/or targets and/or texture
Measurement rate
1,250,000 measurements/s
Dimensions
304 x 150 x 79 mm
(12 x 5.9 x 3.2 in)
Weight
950 g
(2.1 lb)
Connectivity
USB 3.0
Output formats
.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .dxf, .3mf, .iges(1), .step(1)
(1) With Peel 3.CAD only
(2) With Peel 3 Pro.CAD only
Take your reverse engineering projects further with 3D scanning
Get more details on the HP DesignScan 3D scanner and HP Scan-to-CAD software
FAQ
Have questions? We're here to help.
-
HP Scan-to-CAD software is a bridge to a CAD module; it is the missing link you will need to extract usable information from your scan and transfer it to CAD.
-
Entities and created surfaces can be exported in .stp, .igs, .csv and .dxf format.
-
HP Scan-to-CAD Software is perfect to work with SolidWorks, Autodesk, Inventor as well as other popular CAD platforms.
-
HP Scan-to-CAD Software is available as a permanent licence with free software updates (it will basically work for life).
-
Targets are more of a complement; the scanner can use geometry and texture for positioning. They are highly recommended for flatter or smoother surfaces as well as when accuracy is important.
